Probe Station OverviewA probe station is an interface tool to measure the electrical characteristics of your microelectronic device. Whether it be a wafer, glass, MEMS etc, if you are unable to see the inputs and outputs of your device precisely with the naked, a probe station is what you need to perform measurements. By using a combination of a microscope and micropositioners, users can accurately make contact with probes to touch onto their device and use other eletronic meters to see your results.
Everbeing probe stations are available to suit your every application need. Our solution approach is modular and can vary a lot depend on what you're looking for. Usually we split applications between DC and RF probing.
Narrowing your RequirementsSome details you would need to identify are:
- What is my device size and probing size?
- What type of data am I trying to measure?
- Do I need my DUT's to be heated?
- Do I need high frequency (RF) probing? (For more information on RF probes, please check out GGB Picopobes at www.ggb.com
|Chuck Stage||Chuck Up/Down||Microscope Stage||Platen Lift||Platen Fine Adjustment|
In addition to the series above, there are mmW probe stations in their own category, as well as controlled environment probe stations. These two types are more specific and offers all the features you need for these applications. Please refer to the EB mmW Probe Station page and CG-196 page.
For more information on probing precision and resolution, please take a look at our micropositioner page here.
EB mmW Probe Station
These mmW probe stations are designed for direct connection between waveguide and flang ...

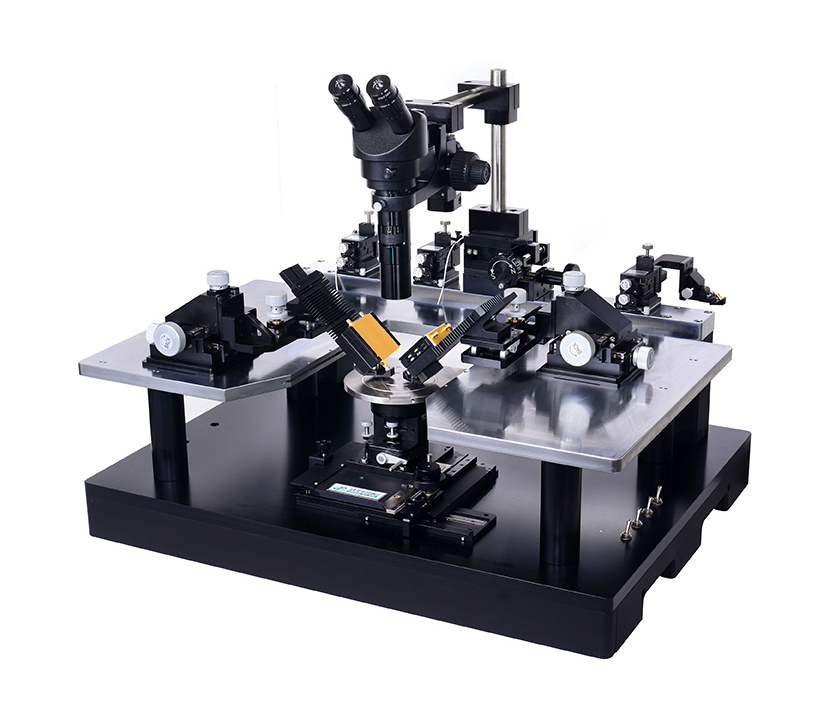

EB mmW Probe Station (For Anritsu)
This Everbeing mmW probe stations is specifically for Anritsu mmW extenders for the Vec ...
BD Series Complete Probe Station
Best for DC and RF probing, the platen lift is designed for smooth raise and contact of ...

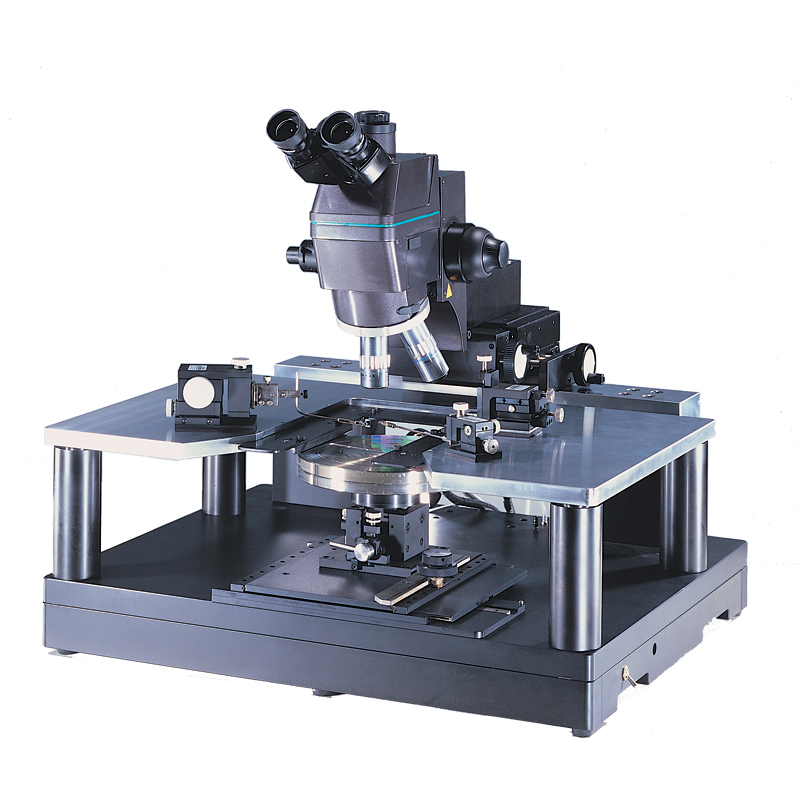

EB Series Enhanced Probe Station
Comprehensive prober for DC and RF. The EB series contains features to step-up your usa ...
C Series Starter Probe Station
Contains fundamental features to probing. C series lets you kick off your experiments a ...
C-2 Mini Probe Station
The smallest probe station which still preserves the key functions and precision that a ...
CG-196 Controlled Environment Probe Station
Everbeing controlled environment probe station allows vacuum and cryogenic probing down ...
